ibidi气体孵育系统/ibidi Gas Incubation System
A gas mixer that upgrades the ibidi Heating System to a complete stage top incubator for all live cell imaging applications, including high resolution, TIRF, and confocal microscopy
Ideal for live cell imaging applications - full incubator conditions on the microscope
Stable gas incubation without evaporation (patent pending technology)
Suitable for various experimental conditions (e.g., pH, hypoxia, and hyperoxia)
Fully compatible with the ibidi Heating Systems
订购信息：
|
Cat. No.
|
Description
|
Pcs./Box
|
|
11920
|
ibidi Gas Incubation System for CO2 (active CO2 gas mixer incl. humidifying column)
|
1
|
|
11922
|
ibidi Gas Incubation System for CO2 nd O2 (active CO2 and O2 gas mixer incl. humidifying column) - coming soon
|
1
|
|
|
|
|

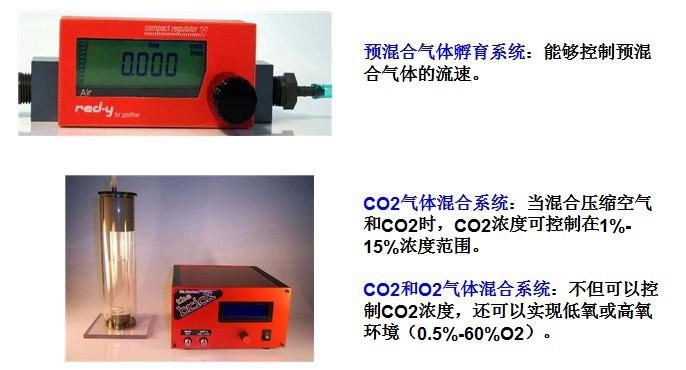

Active gas mixer
|
|
|
|
Passive gas mixer
|
|
|
CO2 range
|
0 – 15 % CO2
|
dependent on premixed gas
|
|
O2 range
|
optional 0.5 – 60 % O2
|
dependent on premixed gas
|
|
Rel. humidity
|
60 – 95 %
|
60 – 95 %
|
|
Gas flow range
|
3 -120 l/h
|
0 – 120 l/h
|
|
Accuracy humidity control
|
± 2.5%*
|
± 2.5%*
|
|
Accuracy CO2
|
± 3%*
|
dependent on premixed gas
|
|
Accuracy O2
|
± 3.5%*
|
dependent on premixed gas
|
|
Gas consumption
|
0.3 containers** / year
|
5 containers** / year
|
|
Recommendation
|
For frequent and continuous use
|
For less frequent use
|
应用：
Live cell imaging that requires incubator conditions on the microscope, for example:
- Chemotaxis
- Angiogenesis
- Cell migration, proliferation, wound healing
- Cell culture under flow
Imaging applications with extra focus stability, for example:
- TIRF
- Confocal microscopy
Anaerobic conditions or oxidative stress
技术特征：
Precise and reliable gas incubation
Active and fast humidification - no evaporation
Uses pressurized air to create the gas flow – no vibrations
Optional compressor available (for when pressurized air is not obtainable)
The ibidi Gas Incubation System upgrades your ibidi Heating System to a complete stage top incubator.
