粘附和悬浮细胞的活细胞成像，4孔硅胶插入元件
适合于单细胞的长期显微实验
进行少量细胞培养时无冷凝现象
利于高质量光学观察的锥形孔设计
A 4-well silicone insert for live cell imaging of both adherent and suspension cells
Allows long-term microscopy assays of single cells
Cultivation of small numbers of cells without evaporation risks
Conical wells for superb optical quality
规格/Specifications:
|
Number of wells
|
4
|
|
Dimensions of wells (w x l) in mm
|
2.0 x 1.5
(digital format 4:3)
|
|
Diameter of the complete insert
|
12 mm
|
|
Height of the complete insert
|
4.2 mm
|
|
Volume per well
|
10 μl
|
|
Growth area per well
|
0.03 cm2
|
|
Material
|
Biocompatible silicone
|
|
Bottom
|
No bottom –
sticky underside
|
应用/Applications:
Live cell imaging of adherent and suspension cells
Immunofluorescence assays
Immobilization of cells in small wells, e.g., for 3D assays
Performing long-term microscopy assays lasting up to several weeks
Co-cultivation of cells
Cell tracking of very small cell numbers over time
Cell differentiation, e.g., single stem cells
技术参数/Technical Features:

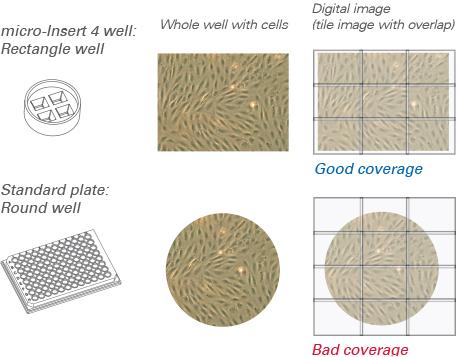

Four small 2.0 mm x 1.5 mm microscopy wells with a 4:3 digital format
Suspension cells cannot escape the observation field
Adhesive underside
Transferable to any flat clean surface
No material is left behind upon the insert’s removal
Includes a rim for easy handling of the insert with tweezers
