A μ-Plate 96 well used to investigate angiogenesis in high throughput tube formation assays
· Fully SBS (Society for Biomolecular Screening) and robotics compatible screening plate

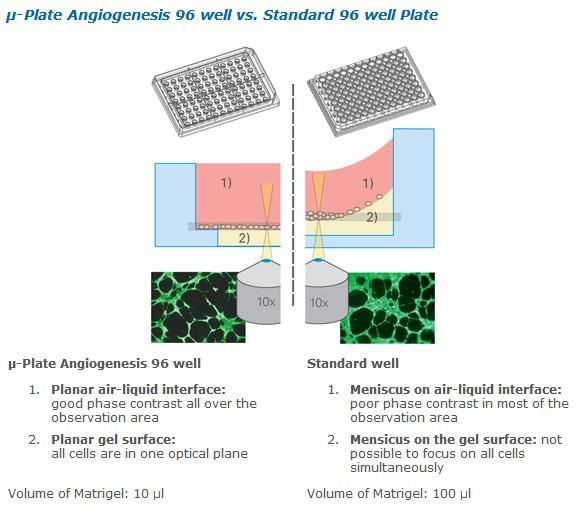

· Brilliant visualization without meniscus formation, and with all cells in one focal plane
· Cost-effective high throughput experiments, requiring only 10 μl of gel per well
· Also available in a version for low resolution microscopy
Applications:

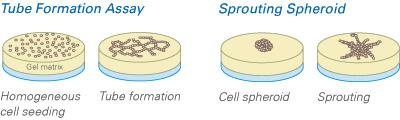

· Tube formation assays
· Sprouting assays
· 3D cell culture
· Immunofluorescence staining
· Cultivation and microscopy of both living and fixed cells
Technical Features:
· Standard SBS format
· Two types of plates available:
μ-Plate Angiogenesis 96 well with ibidi Standard Bottom(180 μm) for high resolution microscopy
μ-Plate Angiogenesis 96 well LR with thick plate-like bottom (1 mm) for low resolution (LR) microscopy only
Specifications:
|
Number of wells
|
96
|
|
Length / Width
|
127.7 / 85.5 mm
|
|
Heigh with / without lid
|
16.6 / 14.4 mm
|
|
Well-to-well distance
|
9.0 mm
|
|
Volume inner wells
|
10 μl
|
|
? Inner wells
|
4 mm
|
|
Volume upper wells
|
70 μl
|
|
? Upper wells
|
5 mm
|
|
Growth area per inner well
|
0.125 cm2
|
|
Coating area per inner well
|
0.23 cm2
|
|
Well clearance
|
1.0 mm
|
|
Bottom 89646: ibidi Standard Bottom (180 μm)
Bottom 89661: Thick plate-like (1 mm)
|
