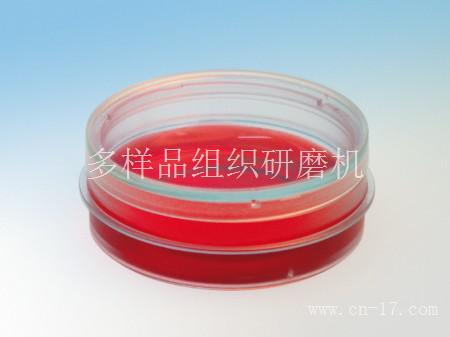

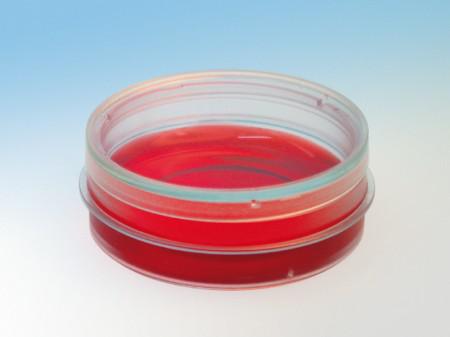

35mm玻璃底培养皿，应用于激光共聚焦、TIRF(全内荧光反射技术)、DIC和单分子应用
产品特色
· 玻璃盖玻片的厚度降低后，细胞成像更完美。

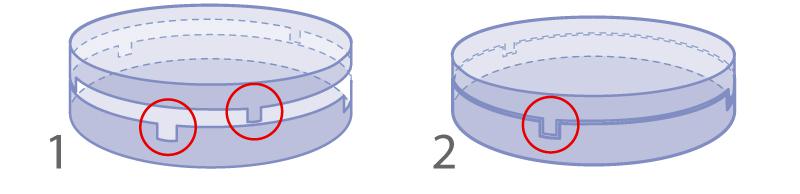

· 盖子锁扣设计，有效减少蒸发。
· 使用特殊的DIC盖子，可以进行DIC实验。
· 提供用于重找回的带格子的款式供选择：Grid-50 / Grid-500。
应用
· 细胞培养和显微观察
· 荧光相关光谱
· confocol，TIRF，DIC和单细胞应用
技术规格参数：
· 底部由D 263 M 肖特玻璃制成，厚度为170 μm +/- 10 μm
· 标准的35mm直径的培养皿
· 需要预先包被使细胞粘附
|
? μ-Dish
|
35 mm
|
|
Volume
|
2 ml
|
|
Growth area
|
3.5 cm2
|
|
Coating area using 400 μl
|
4.1 cm2
|
|
? observation area
|
21 mm
|
|
Height with / without lid
|
14/12 mm
|
|
Bottom
|
Glass coverslip No. 1.5,
selected quality,
170 μm +/- 10 μm
|
ibidi Standard Bottom vs. ibidi Glass Bottom
|
|
ibidi Standard Bottom
|
ibidi Glass Bottom
|
|
Optical properties
|
|
Refractive index (nD 589 nm)
|
1.52
|
1.52
|
|
Abbe number
|
56
|
55
|
|
Thickness
|
#1.5 (180 μm)
|
#1.5 (170 μm)
|
|
Material
|
Microscopy plastic
|
D 263M Schott borosilicate glass
|
|
Autofluorescence
|
Low
|
Low
|
|
Transmission
|
Very high (even ultraviolet)
|
High (ultraviolet restrictions)
|
|
Birefringence (DIC)
|
Low (DIC compatible*)
|
Low (DIC compatible*)
|
|
Other aspects
|
|
Surface modifications
|
ibiTreat – tissue culture treated
Uncoated – hydrophobic
|
Only pure glass
|
|
Protein coatings
|
Possible
|
Possible
|
|
Gas permeable
|
Yes
|
No
|
|
Material flexibility
|
High
|
Low
|
|
Breakable
|
No
|
Yes
|
|
Recommended for
|
All kinds of fluorescence microscopy
|
TIRF and single photon
|
订购信息
|
货号
|
描述
|
包装规格
|
|
81158
|
μ-Dish 35 mm, high glass bottom, ? 35 mm, 2 ml volume, No. 1.5 (170 μm +/- 10 μm) D 263 M Schott glass, sterile
|
