A black 96 well plate with flat and clear bottom for high throughput applications in cell-based assays
Ideal for cell microscopy
Excellent inner well flatness and whole plate flatness
Low well-to-well crosstalk in fluorescence microscopy
Applications:

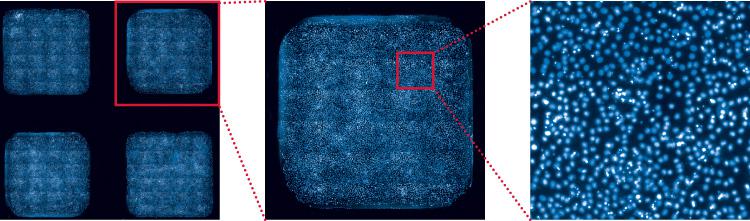

Fluorescence-based imaging of living or fixed cells
High throughput screening (HTS) in cell culture
Compound screenings (toxicology)
Large-scale transfection experiments
Technical Features:
Standard format, and dimensions of 85.5 x 127.5 mm (meets ANSI / SBS Standards)
96 quadratic wells with standard numbering
Compatible with automation equipment
Excellent inner well flatness and whole plate flatness
Suitable for fluorescence scanners
High-quality plastic bottom, which is compatible with solvents for staining and fixation, and also with immersion oil
Sterile, single packaging
Specifications:
|
Length / Width
|
127.7 / 85.5 mm
|
|
Height with /without lid
|
17.2 / 15.0 mm
|
|
Single well depth
|
13.0 mm
|
|
Well-to-well distance
|
9.1 mm
|
|
Single well dimensions
|
7.3 x 7.3 mm
|
|
Single well growth area
|
0.55 cm2
|
|
Volume single well
|
300 μl
|
|

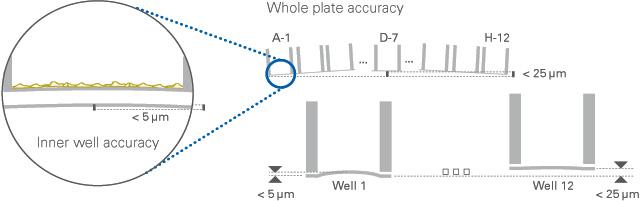

Inner well flatness
|
± 5 μm
|
|
Whole plate flatness
|
± 25 μm
|
|
Bottom: ibidi Standard Bottom
|
Excellent for Cell Microscopy
Inner well flatness < 5 μm
Whole plate flatness < 25 μm
|
