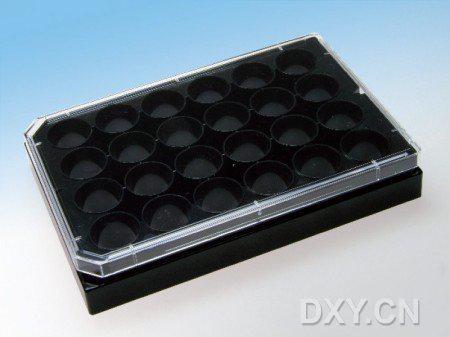

μ-Plate 24 well
A black 24 well plate with flat and clear bottom for high throughput applications in cell-based assays
Ideal for cell microscopy
Excellent inner well flatness and whole plate flatness
Low well-to-well crosstalk in fluorescence microscopy
Applications:
Fluorescence-based imaging of living or fixed cells
High throughput screening (HTS) in cell culture
Wound healing experiments with ibidi Culture-Inserts
Large-scale transfection experiments
Technical Features:
Standard format, and dimensions of 85.5 x 127.5 mm (meets ANSI / SBS Standards)
24 round wells with standard numbering
Compatible with automation equipment
Excellent inner well flatness and whole plate flatness
Suitable for fluorescence scanners
High-quality plastic bottom, which is compatible with solvents for staining and fixation, and also with immersion oil
Sterile, single packaging
Specifications:
|
Length / Width
|
127.7 / 85.5 mm
|
|
Height with /without lid
|
22.5 / 20.5 mm
|
|
Single well depth
|
18.5 mm
|
|
Well-to-well distance
|
19.0 mm
|
|
? of single wells
|
15.5 mm
|
|
Single well growth area
|
1.9 cm2
|
|
Volume single well
|
1 ml
|
|
Inner well flatness
|
± 10 μm
|
|
Whole plate flatness
|
± 25 μm
|
|
Bottom: ibidi Standard Bottom
|
|
