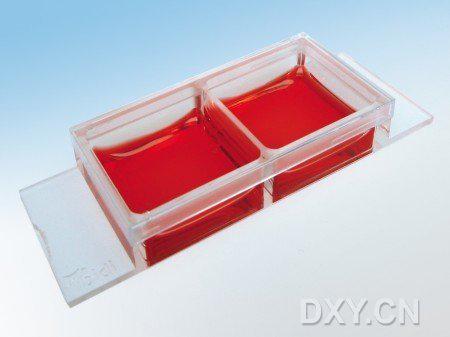

μ-Slide 2 well
An open μ-Slide with 2 wells for use in immunofluorescence and high-end microscopy
All-in-one chamber used for cell culture and microscopy
Observation of the sample through the coverslip-like bottom using high resolution microscopy
Fast and easy immunofluorescence, with no coverslips and no leakage
Cost-effective experiments using small numbers of cells and low volumes of reagents
订购信息
|
Cat. No.
|
Description
|
Pcs./Box
|
RMB
|
|
80286
|
μ-Slide 2 well, ibiTreat, tissue culture treated, sterile
|
15
|
￥ 1440
|
|
80281
|
μ-Slide 2 well, hydrophobic, uncoated, sterile
|
15
|
￥ 1440
|
|
80285
|
μ-Slide 2 well, Poly-D-Lysine, sterile (available only on request)
|
15
|
￥ 4230
|
|
80284
|
μ-Slide 2 well, Poly-L-Lysine, sterile
|
15
|
￥ 4230
|
|
80282
|
μ-Slide 2 well, Collagen IV, sterile
|
15
|
￥ 4230
|
|
80283
|
μ-Slide 2 well, Fibronectin, sterile (available only on request)
|
15
|
￥ 4230
|
Applications/应用:
· Cultivation and microscopy of cell cultures
· Transfection assays
· Fluorescence microscopy of both living and fixed cells
· Live cell imaging over extended time periods
Technical Features/技术特征:
· Open μ-Slide with 2 independent wells
· Excellent optical quality for high-end microscopy
· Compatible with staining and fixation
· ibiTreat surface for optimal cell adhesion
· Made of biocompatible plastic material – no glue and no leaking
Specifications/规格:
|
Number of wells
|
2
|
|
Dimensions of wells
(w x l x h) in mm
|
21.2 x 23.3 x 9.3
|
|
Recommended volume per well
|
1500 μl
|
|
Total height with lid
|
10.8 mm
|
|
Growth area per well
|
4.8 cm2
|
|
Coating area per well
|
7.5 cm2
|
|
Bottom matches coverslip
|
No. 1.5
|
|
Bottom: ibidi Standard Bottom
|
|
Immunofluorescence of Human Umbilical Vein Endothelial Cells (HUVEC) in a μ-Slide 2 well Blue: Nucleus (DAPI)
Green: Centrioles (Alexa 488)
Red: F-Actin cytoskeleton (Alexa 555)
