Applications:
Fluidic assays with up to three different liquids
Cell sorting with laser traps
Fluidic focusing of inner lane
Technical Features:
3 channels ending in 1
Microfluidic bi-directional gradient generator
Fully compatible with the ibidi Pump System and other pumps
The flow is always laminar
Contains a millimeter scale bar
Also available as a Flow Kit
Specifications:
|
Adapters
|
Female Luer
|
|
Volume per reservoir
|
60 μl
|
|
Number of channels
|
3 in 1
|
|
Total channel volume
|
60 μl
|
|
Height of all channels
|
0.4 mm
|
|
Width of channels thin/thick
|
1/3 mm
|
|
Total growth area
|
1.23 cm2
|
|
Distance of scale bars
|
1 mm
|
|
Bottom: ibidi Standard Bottom
|

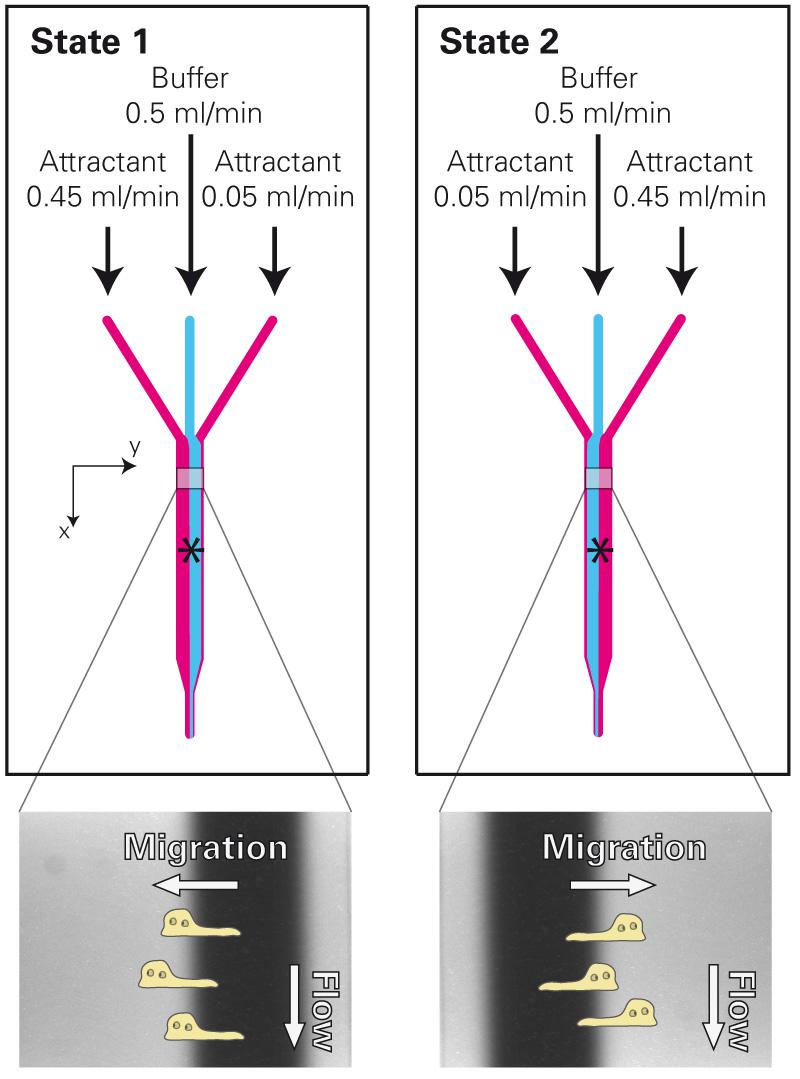

Flow Setup for Switchable Chemotactic Gradients

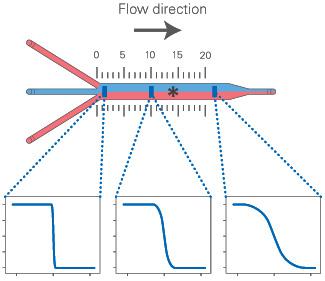

Gradient steepness at different positions. The flow is generated by the ibidi Pump System .

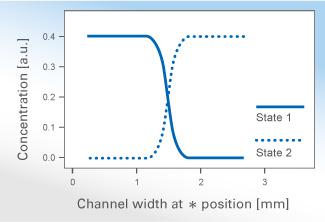

Overlapping gradients for chemotactical cell trapping. Switching
times of some seconds allow fast gradient switching, so that
cytoskeletal dynamics can be observed using fluorescence microscopy.
Example Experiment
