A bottomless 6 channel slide used for cell culture applications with a self-adhesive underside to which bespoke substrates can be mounted
Versatile – i.e., permits the mounting of a variety of bottom materials
Cost-effective experiments with small numbers of cells and low volumes of reagents
Applications:
Running multiple immunofluorescence assays and live cell imaging
Real-time imaging under either static or flow conditions
Inserting materials or tissue into perfusion channels
Running of shear stress experiments on any substrate
Usable with a range of bottom materials, such as plastic sheets, silicon chips, and glass slides
Technical Features:
Bottomless slide
Self-adhesive underside
Biocompatible adhesive that has been cell culture tested
Adheres to all flat surfaces, even wet surfaces
Female Luer adapters for connection to tubing and pump systems
Sterile packaging
Suitable coverslips available
Specifications identical to those of the μ-Slide VI 0.4 , except that it has no bottom

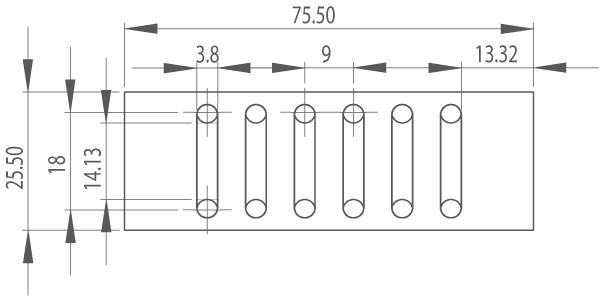

Specifications:
|
Adapters
|
Female Luer
|
|
Volume per reservoir
|
60 μl
|
|
Number of channels
|
6
|
|
Volume of each channel
|
30 μl
|
|
Height of channels
|
0.4 mm
|
|
Length of channels
|
17 mm
|
|
Width of channels
|
3.8 mm
|
|
Growth area per channel
|
0.6 cm2
|
|
Bottom
|
none
|

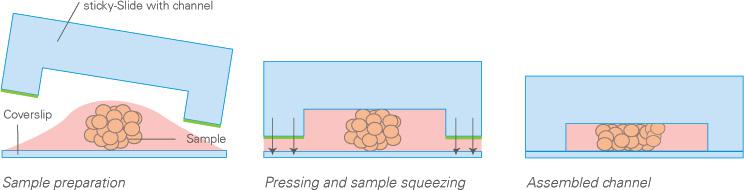

Example: Setup of a Sample Squeezed into a Channel sticky-Slide
