A bottomless channel slide used for perfusion applications with a self-adhesive underside to which bespoke substrates can be mounted
Versatile – i.e., permits the mounting of a variety of bottom materials
Available in various channel heights from 0.1 to 0.8 mm
Applications:
Inserting materials or tissue into perfusion channels
Running of shear stress experiments on any substrate
Usable with a range of bottom materials, such as plastic sheets, silicon chips, and glass slides
Technical Features:
Bottomless slide
Self-adhesive underside
Cell culture tested biocompatible adhesive
Adheres to all flat surfaces, even wet surfaces
Includes female Luer adapters for connection to tubing and pump systems
Sterile packaging
Suitable coverslips available
Specifications identical to those of the μ-Slide l Luer , except that it has no bottom

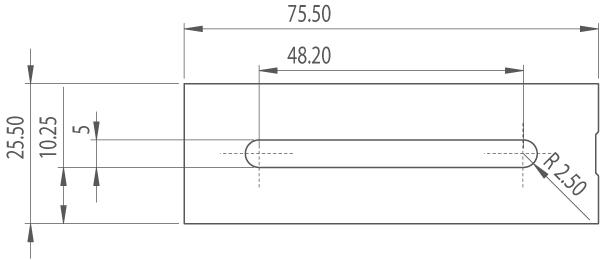

Specifications:
|
sticky-Slide I
|
0.1 Luer
|
0.2 Luer
|
0.4 Luer
|
0.6 Luer
|
0.8 Luer
|
|
Volume of the channel (μl)
|
25
|
50
|
100
|
150
|
200
|
|
Height of the channel (μl)
|
100
|
200
|
400
|
600
|
800
|
|
Channel length
|
50 mm
|
|
Adapters
|
Female Luer
|
|
Volume per reservoir
|
60 μl
|
|
Growth area per channel
|
2.5 cm2
|
|
Bottom
|
none
|

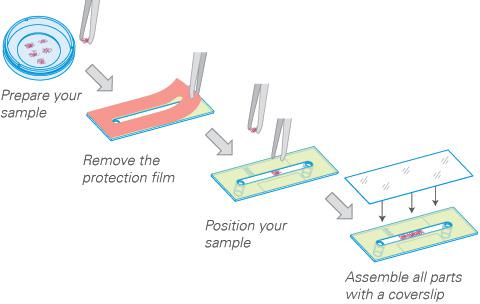

Example 1:
Sample Insertion into a Channel for Perfusion Studies
Example 2:
Setup of a Sample Squeezed into a Channel
|
